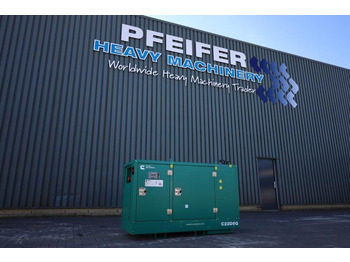

Stromgenerator Cummins C22D5Q Declaration of Conformity, Diesel, 22kVA, A

Leistung 22 kVA

The Cummins C22D5Q, C38D5Q, C55D5EQ, C66D5EQ, C110D5Q, C170D5Q, and C220D5EQ are the generator models we offer for both sale and rental, available for immediate delivery from stock at Pfeifer Rentals & Sales. For more information, feel free to contact us without any obligation. Manufacturer: Cummins Typ: C22D5Q Manuf. Year: 2025 Serial nr: D23I155909 Fuel: Diesel General Model: C22D5Q Engine: Cummins X2.5-G2 Controller: PowerStart PS0600 Alternator: Stamford S0L2-G1 Phases: 3-phase Voltage: 400/230 V Frequency: 50 Hz ESP (Standby Power): 22 kVA / 18 kW PRP (Prime Power): 20 kVA / 16 kW Current (ESP): 31.8 A Engine Performance Displacement: 2.5 litres, 3-cylinder inline Speed: 1500 rpm Gross engine power: 27 kWm (ESP), 24.37 kWm (PRP) Oil capacity: 7.3 / 8.0 litres Coolant capacity: 15 litres Air intake: 2.30 m³/min Exhaust gas flow: 127 kg/h at 660°C Max. back pressure (exhaust): 3.38 kPa Fuel Consumption Fuel tank capacity: 55 litres Autonomy @ 75% PRP: 13 hours Fuel consumption at full load (PRP): 5.2 l/h Max. fuel flow: 40 l/h Electrical System Starting voltage: 12 VDC Battery: 12V, 75 Ah Battery charger: 4 A, 12/24 VDC Dimensions & Weight LxWxH: 1.960mm x 0.820mm x 1.285mm Wet Weight (kg) 757 CE (Declaration of Conformity) More detailed pictures / product movie on our website. pfeifermachinery.com Above specifications are subject to change without prior notice and subject to errors
