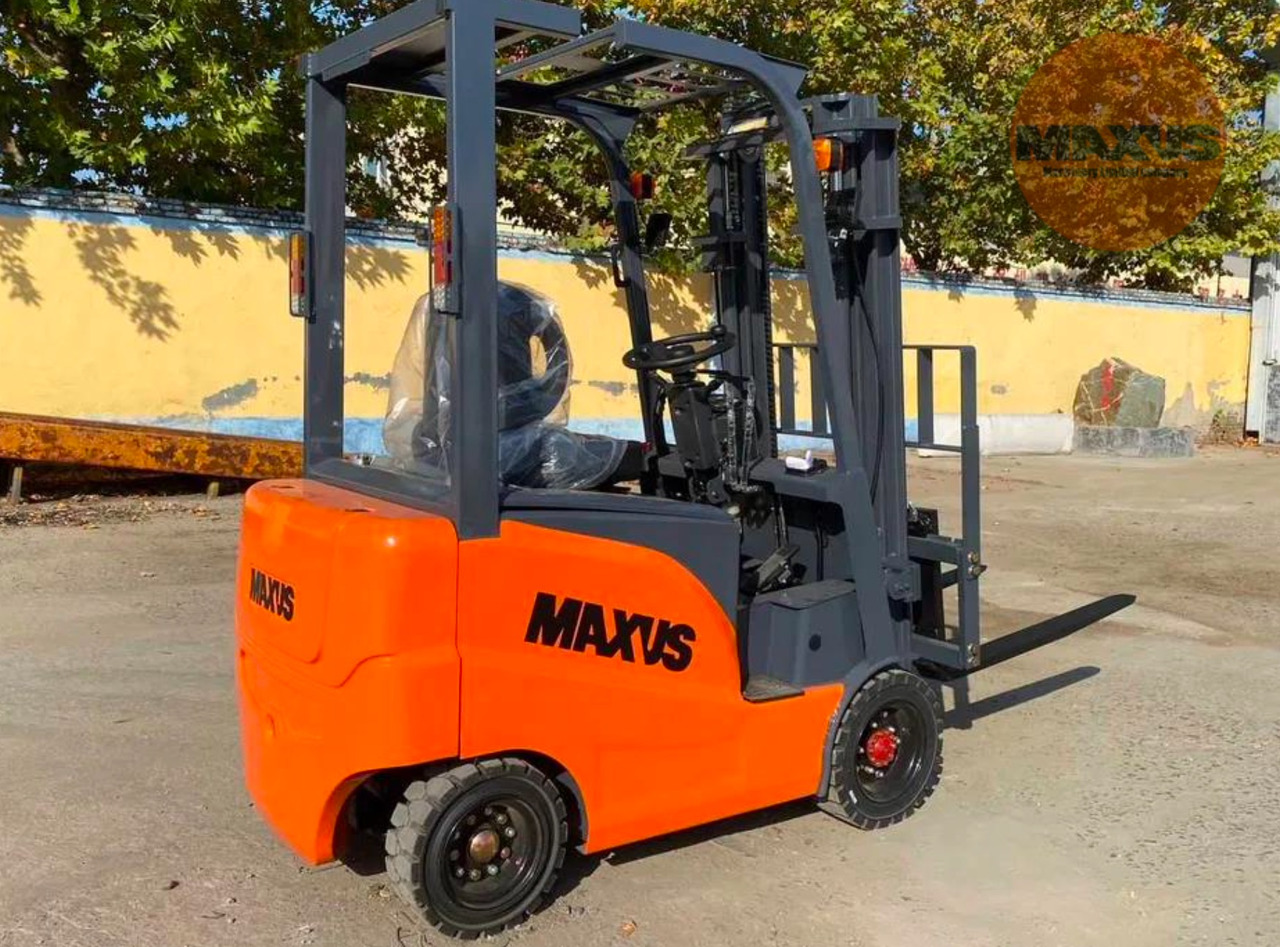

NEU: Elektrostapler maxus New Electric forklift MAXUS 2500kg

Model Maxus 25

Power Type: Battery

Rated Load Capacity: 2500 kg

Load Center Distance: 500 mm

Drive Type: Seat

Length with Forks (L1): 3380 mm

Length without Forks (L2): 2310 mm

Overall Width (B): 1150 mm

Height without Lifting Frame (H1): 2000 mm

Upper Frame Height (H2): 2145 mm

Max. Working Height (H3): 3995 mm

Distance from Seat to Upper Light (L3): 1020 mm

Wheelbase (L4): 1515 mm

Front Overhang (Y): 483 mm

Rear Overhang (L5): 400 mm

Front Wheel Tread (R): 970 mm

Rear Wheel Tread (P): 950 mm

Min. Ground Clearance (F): 135 mm

Max. Lifting Height (H): 3000 mm or optional 3300 mm

Free Lifting Height (H4): 170 mm

Fork Exchange Size (S): 1024/200 mm

Min. Turning Radius (WA): 2050 mm

Min. Aisle Width (RA): 3760 mm (90-degree turn)

Frame Angle (a/β): 6°/12°

Max. Lifting Speed (without load): 380 mm/s

Max. Lifting Speed (with full load): 280 mm/s

Max. Speed (without load): 15 km/h

Max. Speed (with full load): 14 km/h

Max. Climbing Angle: ≤ 15%

Total Weight: 4200 kg

Drive Wheel: 2x/2

Tire Model: Pneumatic tire

Front Tire: 7.00-12

Rear Tire: 18x7-8

Hydraulic Handbrake Pedal: Yes

Brake Type: M-Hand

Battery Voltage/Capacity: 48V/300Ah or optional 48V/500Ah

Drive Motor Power: 11.0 kW AC

Pump Power: 12.0 kW AC

Working Time: 10 hours

Charging Time: 7 hours
