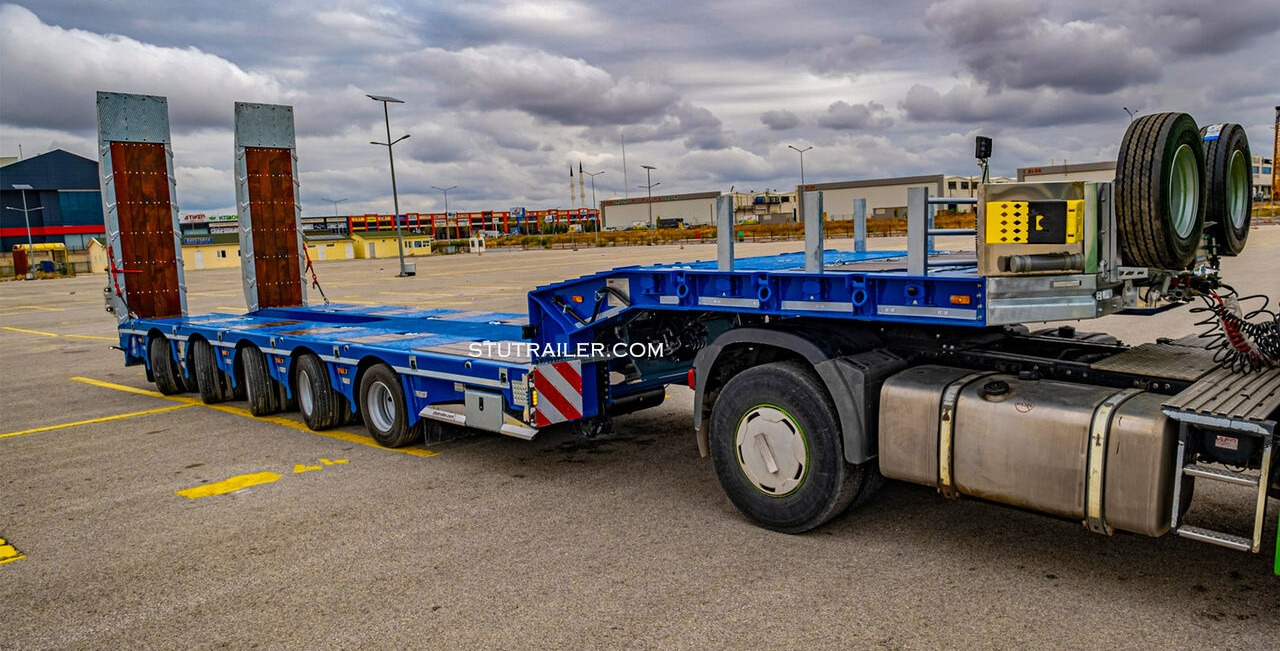

STU 5 Axle Hydraulic Steering Lowbed - Leasing
Inseriert: 23Tg.
Inseriert: 23Tg.
Inseriert: 23Tg.
Turkey, Fevzi Cakmak Mahallesi, 10664 Sokak, No:30/I KARATAY / KONYA / TURKEYDIMENSIONS:
Total Length : 13.720 mm
Platform Lenght : 9.200 mm
Platform Height : 880-930 mm
Ramps Length : 3.920 mm From Ground
The Length Of The Gooseneck : 4.200 mm
Total Platform Width : 2.750 mm + ( Expansion Profiles: 250+250 mm )
Kingpin Capacity : 24 Tons
Empty Weight : 15,5 Tons
Technical Loading Capacity ( GW ) : 84 Tons ( with 6x4 Truck)
CHASSIS and STRUCTURE:
Steel grade will be completely 700MC and will be welding with automatic welding machines.
ACCESSORIES:

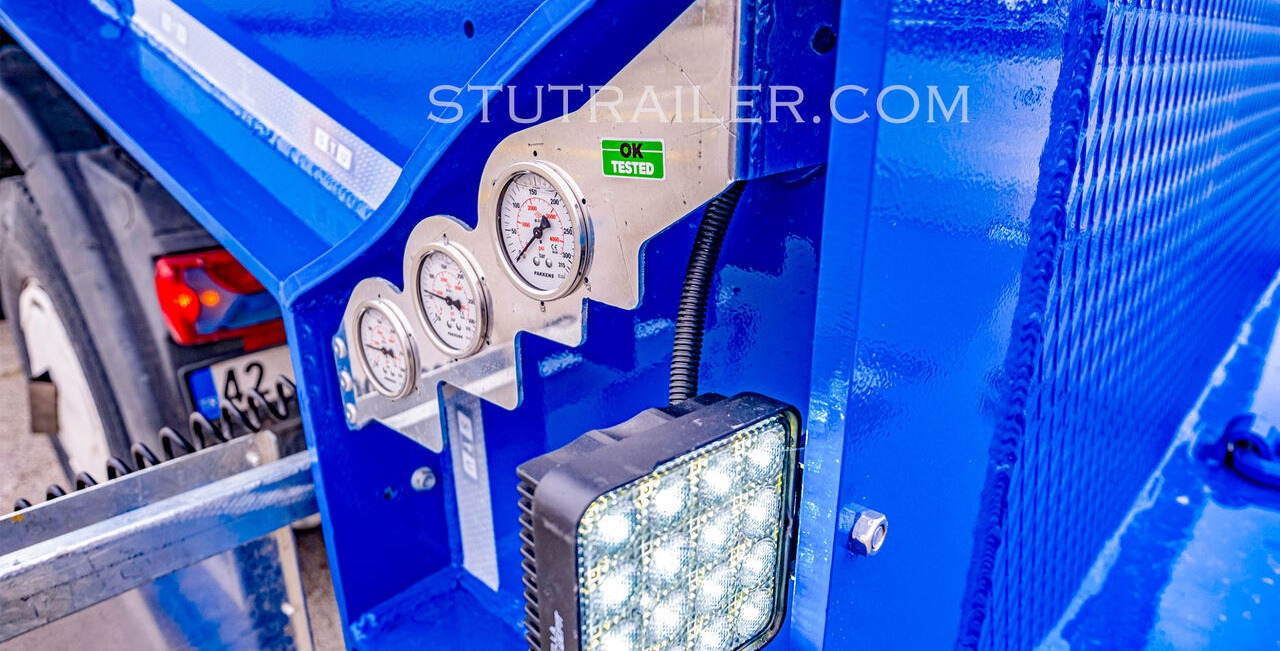

Control Panel (Working Lights, Panel Lights, Blitz Lights, Suspension Leveler, Emergency Brake Button)
2 x 9 Widening Brackets, 2 x Bike safety bar,
1 x Open Top Galvanized Toolbox
1 x Box for 20 x Galvanized Profiles, 2 x Wheel Wedges, 8 x Working Lights
Gooseneck chequered steel and plywood casette on hydraulic turntable,
2 x 7 Chain Rings + 10 x Chain Rings on platform
Tropical Hard Wood on platform
Remote control for Hydraulic Steering and Hydraulic Ramps
1 x Spare Wheel Holders, Aluminium Gooseneck Side Walls
Fuse Box, Aluminium Light Beam and Aluminium small accessories
4 x Antispray Mat for first and last axle, Emergency Turning Light, Blitz Lights
Boom Pool on rear of Platform, Galvanized Hot Deep Hydraulic Ramps
Power pack for hydraulic ramps, Bucher Powerpack for Hydraulic Steering system
